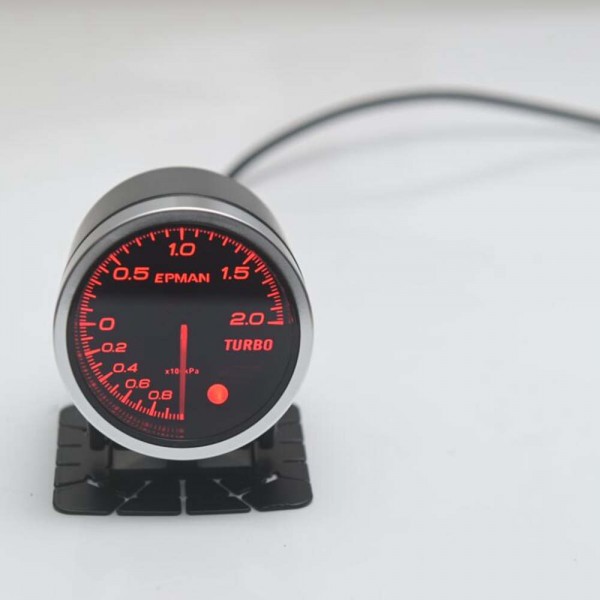

EPMAN Car Auto 12V 2" 52mm Universal -1~2 x100kpa Turbo Boost Gauge 10 Colors Digital LED Display Car Meter With Holder EPXX707

Product in category: Car meter& Accessories - Car meter(52mm)

EPMAN Car Auto 12V 2" 52mm Universal -1~2 x100kpa Turbo Boost Gauge 10 Colors Digital LED Display Car Meter With Holder EPXX707

Stock: In Stock
Reward Points: 18
Model: EPXX707
Weight: 0.60kg

Based on 0 reviews. - Write a review

$18.00

20 or more $17.27

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Reviews

Product Name: 52mm Car Gauge

Face Color: Black

Voltage: 12V

Contents of the package: 1 x Car meter (same as picture)

Housing Color: Silver

Features: 10 colors backlight change

Quality: Excellent

Brand: EPMAN

Features: Waterproof Antifogging

Fitment Type: Direct Replacement

Application: Car Truck Motorbike Boat Yacht
Model Number: EPXX707

You are buying on 100% Brand New of:

EPMAN Car Auto 12V 2" 52mm Universal -1~2 x100kpa Turbo Boost Gauge 10 Colors Digital LED Display Car Meter With Holder EPXX707

**** Quantity per carton : 20 Sets ****

Features:

-2" (52mm) diameter gauge.

-Black dial face when ignition is off.

-10 colors backlights can be selected, and it can memory the setting in the both daytime and night mode.

-Brightness can be selected in 6 different levels, and it can memory the setting in the both daytime and night mode.

-3 buzzer types can be selected (slowly →fast→all the time).

-4 buzzer levels can be selected. (silence →resounding)

-5 Varations open ceremonies can be selected.

-A warning value (arbitrary) can be set and the warning buzzer can be selected from three variations or turn off.

-Data obtained during driving (top value and warning value) can be stored up, and the top value can be reviewed and cleared.

-Flat glass,high-definition scale and long,narrow pointer provides accurate indication and high visibility.
-Brushless stepping motor is used to enable a smooth, instantaneous response to high performance sport driving.

Common Button Operation:

1.There is a button in the backside of the gauge.They are used to review and clear top value,change the colors, adjust the brightness, choose the buzzer, set the warning etc.

2.Short press to switch between different functions settings,long press until buzzer sounds, then enter the setting mode.It will return to normal status when the button is released after 5 seconds.

Power Wires Connecting :

White wire : To 12V wire when ignition on

Red wire :To 12V battery wire

Yellow wire : To 12V wire when small lamp on

Black wire : To ground

Specification:

Model Number: EPXX707

Material: Aluminum

Housing Color: Silver

Face Color: Black

Bezel :Chrome

Voltage: 12V

Diameter Size: 2" (52mm)

Style: Red Needle Readout

Boost Gauge BAR:

Reading range: -1~2 x100kpa

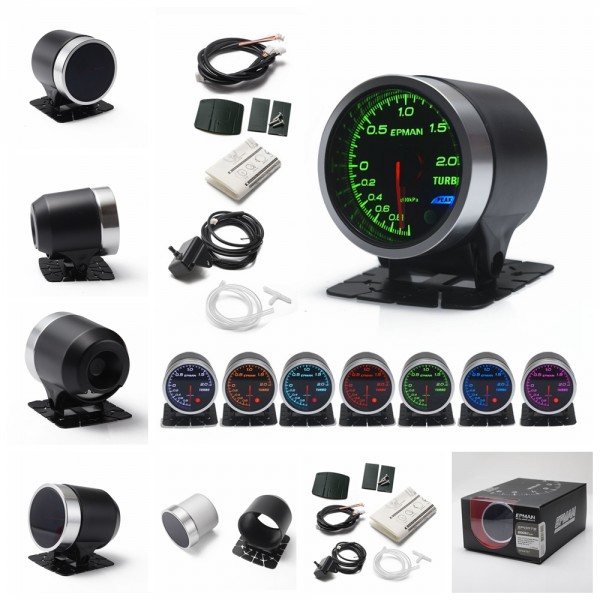

Package includes:

1 x Boost Gauge

1 x Mount Bracket Cup

1 x Meter Wire

1 x Power Supply Wire

1 x Boost Sensor Wire

1 x Three Way Joint ID 4mm

1 x Rubber Hose ID 4mm

1 x Double Sided Tape

2 x Buffer

1 x English Manual

Boost Gauge Bar

Part No.: EPXX707

There are several of the same series:

1:Volt Gauge (Reading Range: 10-15V)

2:Water Temp Gauge (Reading Range: 20~120℃ Sensor Thread Size : 1/8" NPT)

3:Oil Temp Gauge (Reading Range: 50~150℃ Sensor Thread Size : 1/8" NPT)

4:Oil Press Gauge (BAR)(Reading Range: 0-10 x100kpa Sensor Thread Size : 1/8" NPT)

5:Oil Press Gauge (PSI)(Reading Range: 0-140PSI Sensor Thread Size : 1/8" NPT)

6:Tachometer Gauge (Reading Range:0-9000RPM)

7:Turbo Gauge (BAR) (Reading Range: -1~2 x100kpa)

8:Turbo Gauge (PSI) (Reading range: -30~+30PSI)

9:Exhaust Gas Temperature Gauge (Reading range: 2-11 x100℃ Sensor Fitting Thread Size : 1/8" NPT)

Note:

● The product is designed for use on 12v vehicles.Do not install this product on vehicles with 24v systems.

● Do not perform installation of this product immediately after the engine has been switched off. The engine and exhaust system are extremely hot at this time and can cause burns if touched.

● The LED color display of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

● Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

● Instructions Is Included.Professional Installation Is Highly Recommended!!If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.

All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions. We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
